About Us
With OxoTracker, we offer our solar experience to use wherever the sun shines.
Because it is worth tracking…
Because it is worth tracking…
We have more than 10 years of experience focusing on renewable and sustainable energy systems. Gumbel Group continues investment, consultancy, operation & maintenance, EPC activities on solar power plants and online sales and wholesale of products related Solar Power.
Now we decided to combine our solar experience with our R&D team and developed a brand new state of art Solar Tracking System.
We offer the solar tracking system OxoTracker, which we produce by taking into account all the dynamics of the solar sector, to the service of every place where the sun shines, in an easy-to-install, easy-to-integrate, easy-to-finance way.
0
0
0
Solar Tracker
Optimized solar tracking solutions to meet every need
Easy installation & Faster Commissioning
Designed with plug & play approach.
Faster commissioning with mobile app.
Faster commissioning with mobile app.
Flexible & Adaptable
Compatibility with larger format modules
and adaptable to various terrain options.
Client specific communication and power options
and adaptable to various terrain options.
Client specific communication and power options
Smart & Cloud Based
Sophisticated control algorithm. State of
art cloud monitoring, diagnostics,
maintenance, inventory management and more.
art cloud monitoring, diagnostics,
maintenance, inventory management and more.

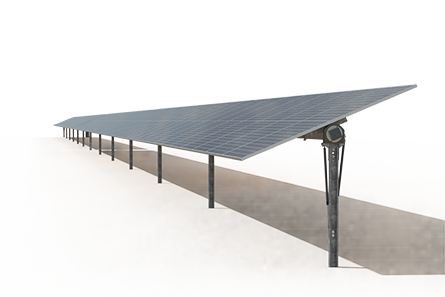

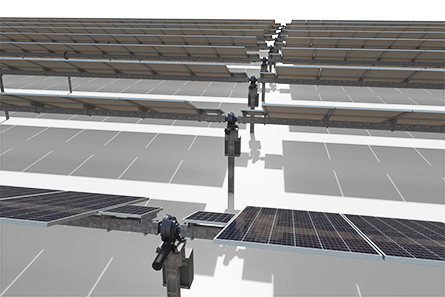

Technical Specs
Structural & Mechanical
| Tracker Type | Independent Row HSAT |
| Module Configuration | 1P |
| Tracking Range | ± 55° |
|
Ground Coverage Ratio
(GCR) |
Configurable to client
specification |
| Slope Tolerance | Configurable |
|
Foundation Methods
Supported |
Rammed
Pre-drilled & concreted Pre-drilled and rammed |
| Modules Supported | Most commercially available |
| Drive System |
Slew Drive, 4800 Nm, 24 V DC
Motor |
| Wind Protection |
Dynamic active stow strategy:
Self or AC powered OCU with battery backup. |
| Snow Protection | Self snow stowing |
| Hail Protection | Self hail stowing |
Controls & Communication
| Control System |
Autonomous OCU-Oxotracker
Control Unit |

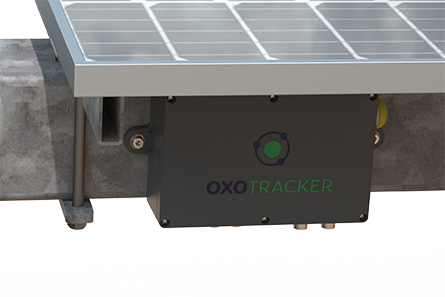

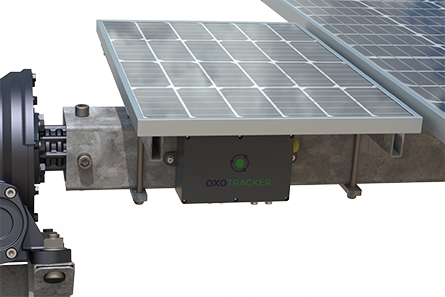

| OCU-Oxo Control Unit |
Microcontroller based control
unit with inclinometer |
| Power Supply |
Optional:
AC wired Self powered |
| Communication |
Optional:
Modbus RS485 Zigbee® Wireless Mesh |
| Control Algorithm | Astronomical Algorithm |
| Backtracking | Flexible backtracking algorithm |
General
| Operating Temperature |
Self-powered: -20 to +50°C
AC Powered: Unit -40 to +70°C Slew Drive: -40 to +60°C |
| Self Consumption | <0.2 kWh per day |
| Manufacturing Assurance | ISO 9001:2015; ISO 45001:2018 |
| Product Certification | Designed in accordance with IEC 62817 |
Installation & Operations and
Maintenance & Warranty
| Warranty |
5 Years on electro-mechanical
10 years on structural (Extendable) |
|
On-site Training,
Supervision Support and Commissioning |
Available |
| O&M Support |
State of art cloud monitoring and
diagnostics |
|
In-field Fabrication
Requirements |
None, designed with plug&play
approach |
|
Scheduled
Maintenance |
Minimal |
|
Module Cleaning
Compatibility |
All commercially available options |
